Project | Raspbeery Pi --> HIFI

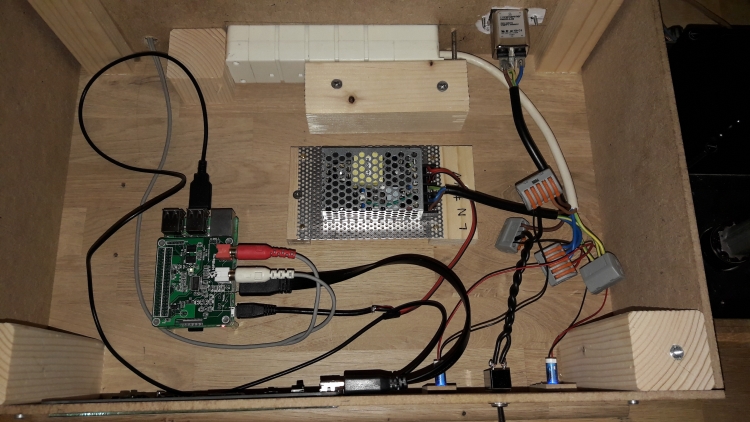

Material:
 Raspbeery PI Raspberry | Raspberry Pi 3 Model B+ v1.3
 Monitor Display | 7“ LCD Display - joy-it
Hifi HiFiBerry DAC+ Pro
230V Power In Kaltgerätestecker, Schraubmontage, 2pol./10A
Netzteil

Schaltnetzteil
Spannung: 5 V / 5A
Mean Well RS-25-5

Mean Well RS-25-5 AC/DC-Netzteilbaustein, geschlossen 5 A 25 W 5 V/DC
230V Stromstecker out alte 6 Fach Steckdosenleiste eingebaut


Frontschalter Kippschalter 250 V/AC 1.5 A 1 x Aus/Ein rastend
 Gehäuse Holz


 Spez konfig für Raspberry Pi / Moode Audio


HDMI Display to work nice with the HifiBerry Card #  vi /boot/config.txt
    dtparam=audio=off
max_usb_current=1
hdmi_force_hotplug=1
config_hdmi_boost=7
hdmi_group=2
hdmi_mode=1
hdmi_mode=87
hdmi_drive=1
display_rotate=0
hdmi_cvt 1024 600 60 6 0 0 0
important is the Audio=off
default it is on



At night the volume should go down:  $ /var/www/vol.sh 60
$ /var/www/vol.sh 90
Check this command first!

# crontab -e
15 19 * * * /var/www/vol.sh 60 > /dev/null 2>&1
20 19 * * * /var/www/vol.sh 85 > /dev/null 2>&1
  # crontab -l
  # service cron reload





Source/Quellen:
- MoOde Audio Software
- MoOde Audio - Forum
-
-
- http://www.fdm-ware.de/
-
-
