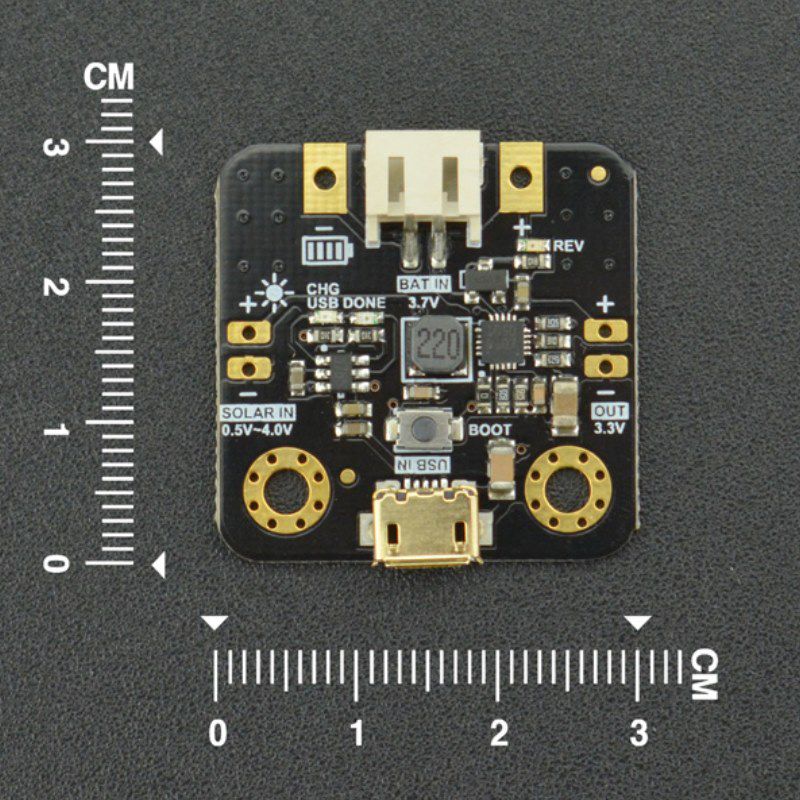

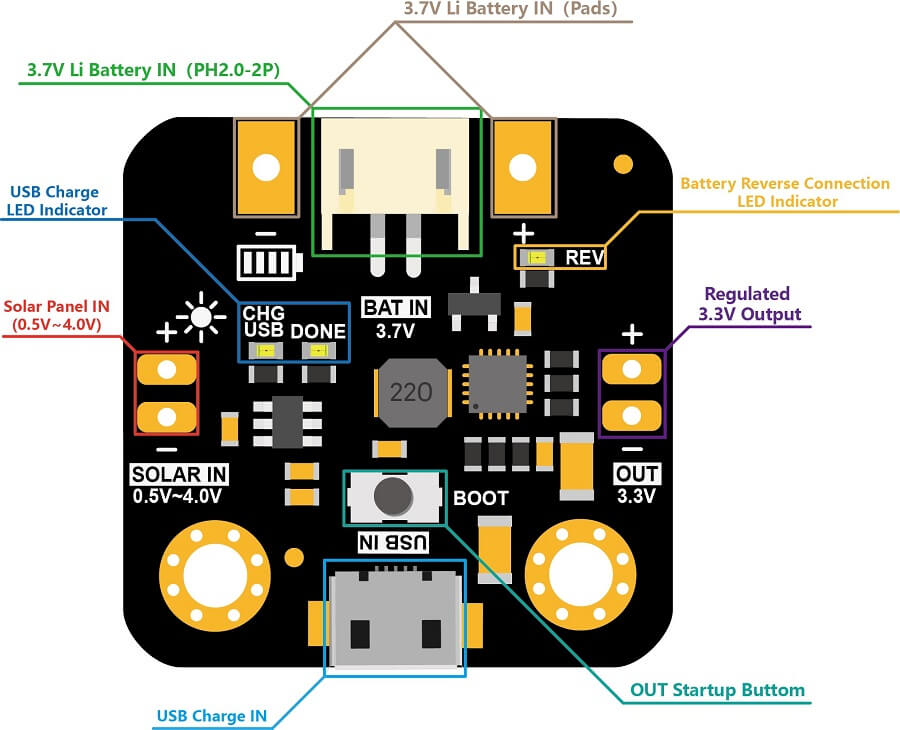

Solar Power Manager Micro V1.0 DFRobot (DFR0579)

Selection Guide
Name Solar Power Manager Micro V1.0 ★
SKU DFR0579
Solar Power Management IC SPV1050
Solar Input Voltage 0.5V ~ 4V
Maximum Charge Current (Solar) 70mA (Solar)/100mA (USB)
Topology DC-DC Boost
Battery 3.7V Lithium Battery
MPPT 75% Open Voltage
Battery Protections Over Charge/Over Discharge/Reverse Connection Protections
Output Protections Short Circuit/Over Current Protections
USB Charge IN Yes
USB OUT No
Regulated OUT One Regulated Output
3.3V 90mA
Dimension 30.0mm×30.0mm
Features A micro power solar power management module for low-power sensors and controllers.
Applications: Wireless Sensor Network, BLE iBecon
For 1V/2V/3V Solar Panels within 0.5W
a






Dokumenten:
DFR0579_Sunflower_Solar_Power_Manager_Micro_V10_Layout_with_dimension.pdf
DFR0579_Sunflower_Solar_Power_Manager_Micro_V10_Schematic.pdf
SPV1050.pdf
-
-
-
-
-

Quellen/Source:
www.dfrobot.com
-
-
-
-
-
-
-
-
