I Firewall to use with and to do:

 19" Rack
 Low Power
 NO FAN
3 Eth Port (WAN / LAN / DMZ)
2 WLAN Port 2.4 / 5

  PF Sense / OPNsense
 Threat Intelligence: IT-Sicherheit zum Selbermachen? SNORT
 Preiswerte, VPN fähige Firewall im Eigenbau oder als Fertiggerät Reverse Proxy
  VPN Server
ELK (ElasticSearch, Logstash, Kibana) ELK to Monitor / / /
---

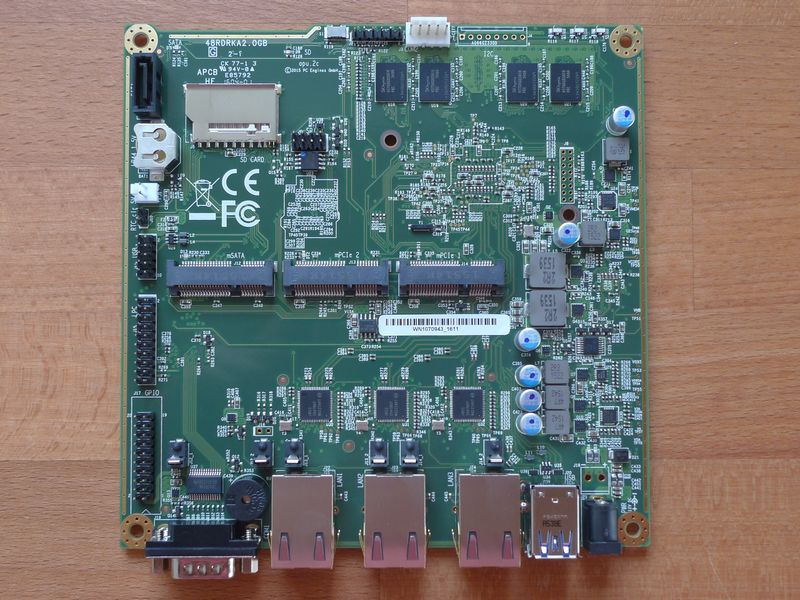

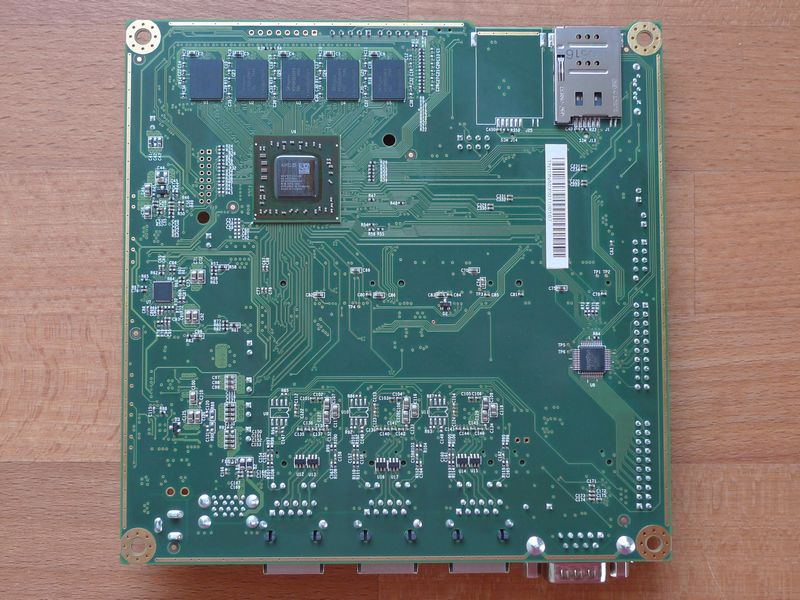

 apu2c4 APU.2C4 system board (GX-412TC quad core / 4GB / 3 Intel GigE / 2 miniPCI express / mSATA / USB / RTC battery)
  • CPU: AMD Embedded G series GX-412TC, 1 GHz quad Jaguar core with 64 bit and AES-NI support, 32K data + 32K instruction cache per core, shared 2MB L2 cache.
  • DRAM: 2 or 4 GB DDR3-1333 DRAM
  • Storage: Boot from m-SATA SSD, SD card (internal sdhci controller), or external USB. 1 SATA + power connector.
  • 12V DC, about 6 to 12W depending on CPU load. Jack = 2.5 mm, center positive
  • Connectivity: 2 or 3 Gigabit Ethernet channels (Intel i211AT on apu2b2, i210AT on apu2b4)
  • I/O: DB9 serial port, 2 USB 3.0 external + + 2 USB 2.0 internal, three front panel LEDs, pushbutton
  • Expansion: 2 miniPCI express (one with SIM socket), LPC bus, GPIO header, I2C bus, COM2 (3.3V RXD / TXD)
  • Board size: 6 x 6" (152.4 x 152.4 mm) - same as apu1d, alix2d13 and wrap1e.
  • Firmware: coreboot (please contact This email address is being protected from spambots. You need JavaScript enabled to view it. for source code if desired).
  • Cooling: Conductive cooling from the CPU to the enclosure using a 3 mm alu heat spreader (included).

 ac12veur2  AC adapter 12V 2A euro plug (for apu / alix1e)

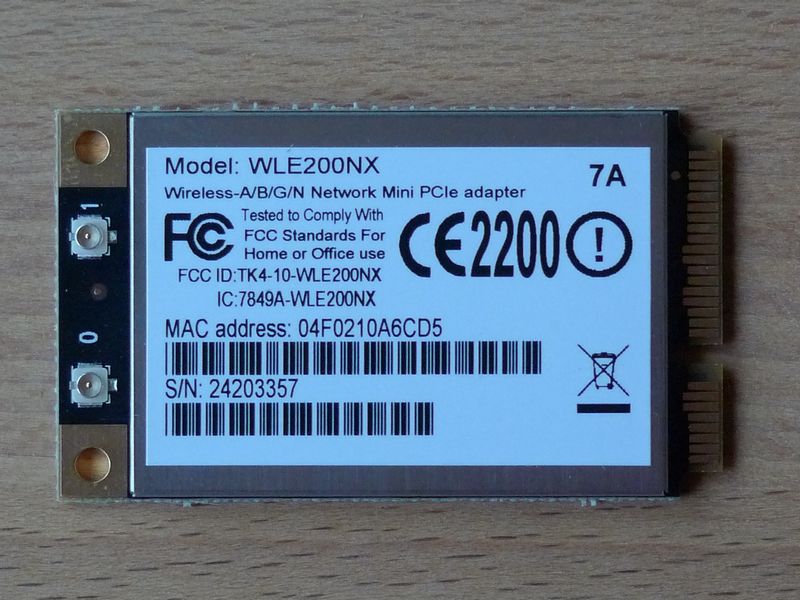

wle200nx 802.11 a/b/g/n miniPCI express radio  Compex WLE200NX 802.11a/b/g/n miniPCI express wireless card (for apu)

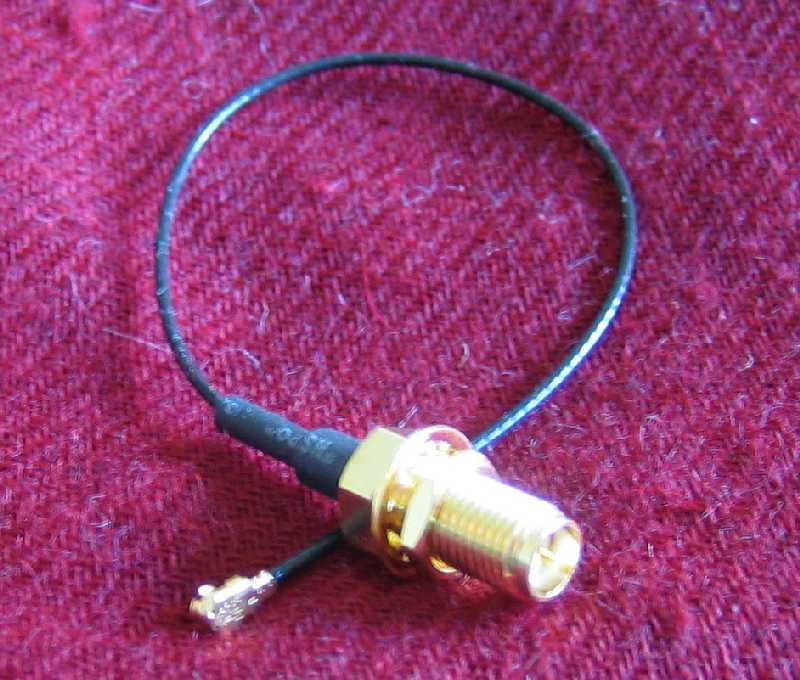

 pigsma  IPEX to reverse SMA pigtail cable

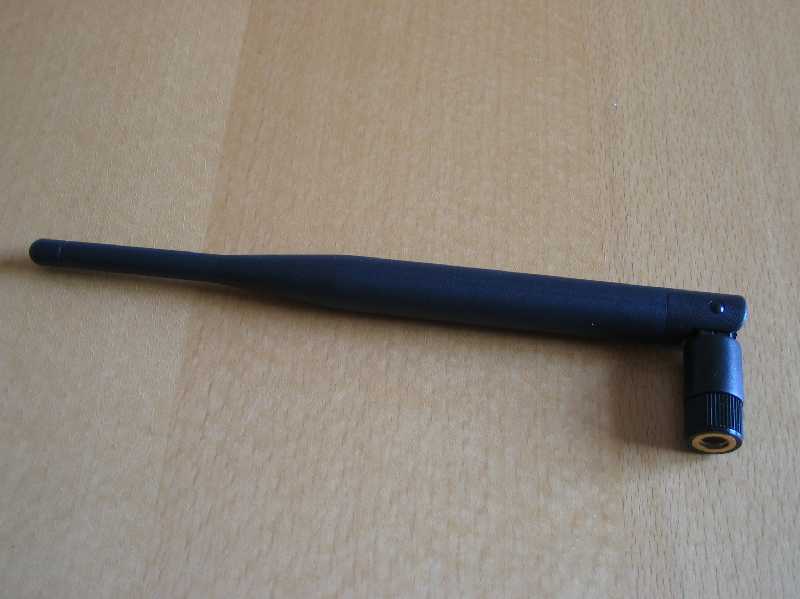

antsmadb   antsmadb = Antenna SMA reverse, dual band, RoHS compliant.

Bootdisk  MSATA KINGSTON SSDNow mS200 Drive, 240GB (SMS200S3/240G)

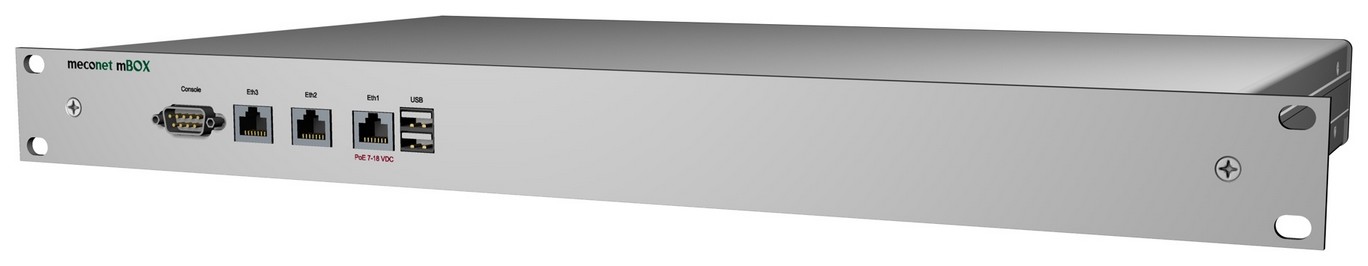

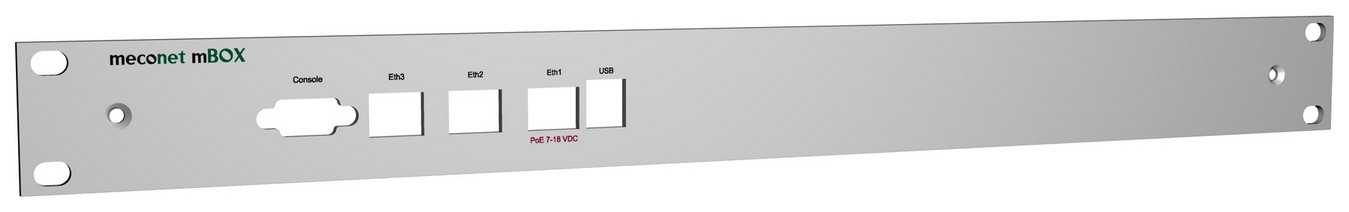

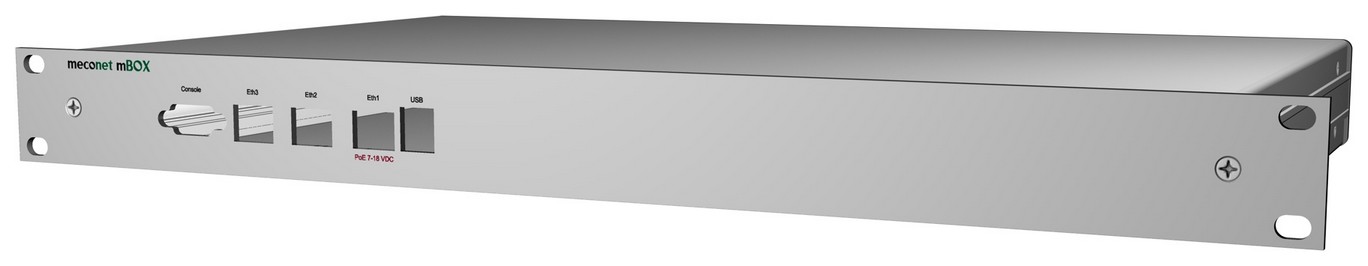

mbox-19-1u-b1-026 mBOX 19" - BASIC 1 für ein PC-Engines ALIX/APU mit Auslässen für 3xLAN, 1xSeriell, 1xUSB

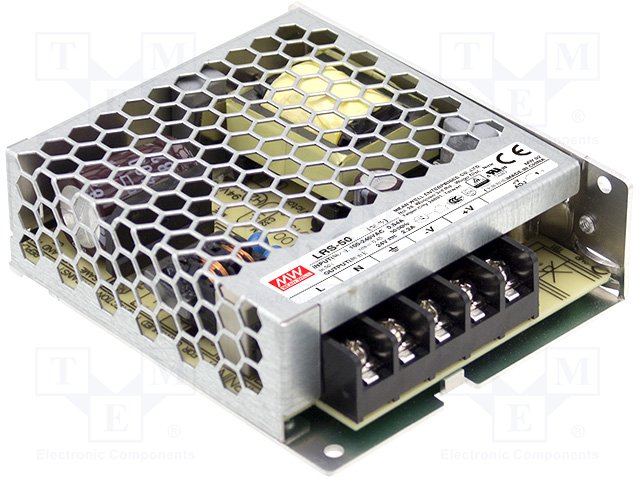

Power suply Mean Well | LRS-50-12 | Output: 12V 50W 0-4.2A

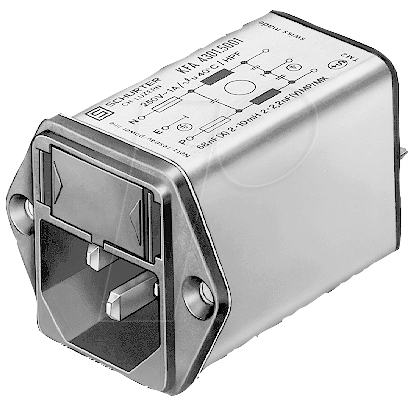

  Kaltgerätestecker mit Endstörfilter und Sicherung Kaltgerätestecker, Schraubmontage, 2pol./4A
some small Parts bei Digi-Key CONN HEADER VERT 2POS | CONN RECEPT 2 POS W/RAMP SL-156 |  | CABLE TIE HLDR ADH MNT WHITE

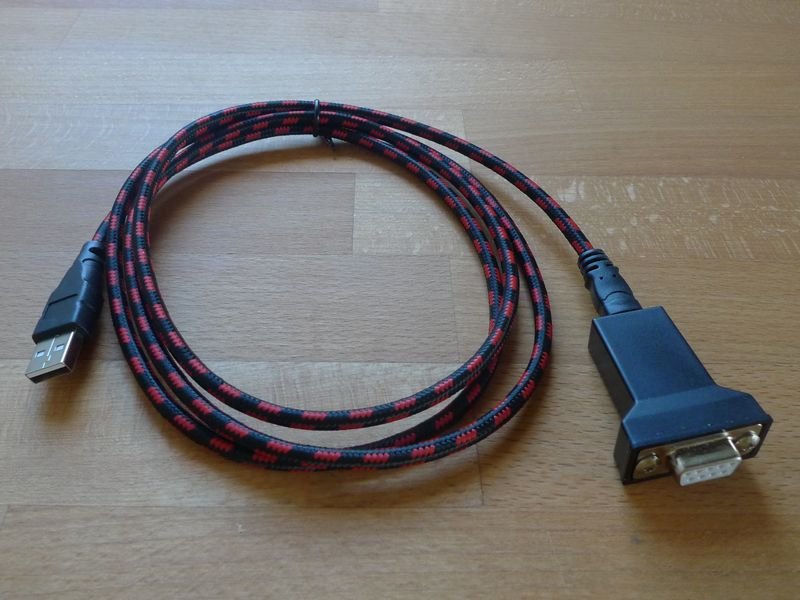

USB to DB9F serial adapter USB to Seriel female (apu2 hat male) CP210x USB to UART Bridge VCP Drivers
- apu boards, 115200 8N1
-
-


-----



Quellen/Source:
-
-
-
- eine Interessante Alternative  Umsetzung – Supermicro X11SBA-LN4F als Basis
Attachments:
File / URLDescriptionFile sizeDownloads
Download this file (apu2.pdf)apu2.pdf 0 kB110
Download this file (Kaltgerätestecker1.pdf)Kaltgerätestecker1.pdf 0 kB137
Download this file (Kaltgerätestecker2.pdf)Kaltgerätestecker2.pdf 0 kB72
Access this URL (LRS-50-12_eng_tds.pdf)LRS-50-12_eng_tds.pdfLRS-50-12_eng_tds0 kB2238
Download this file (LRS-50-12_eng_tds.pdf)LRS-50-12_eng_tds.pdfLRS-50-12_eng_tds0 kB79
Download this file (wle200nx.pdf)wle200nx.pdf 0 kB87
