FTD1232 - USB to TTL Serial Adapter - 3.3V and 5V Operation

Created: 20 March 2019 | Written by Super User | Print | Email | Hits: 22393

View Comments

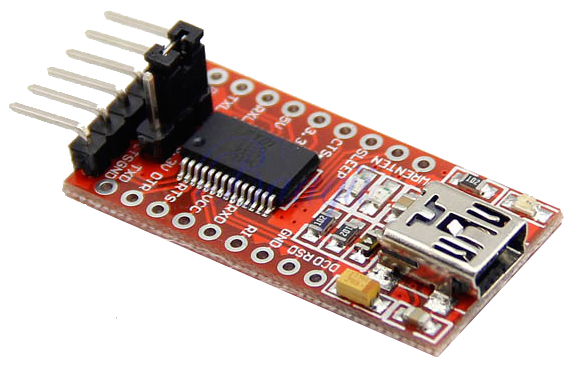

ftd1232 trans FTD1232 - USB to TTL Serial Adapter - 3.3V and 5V Operation

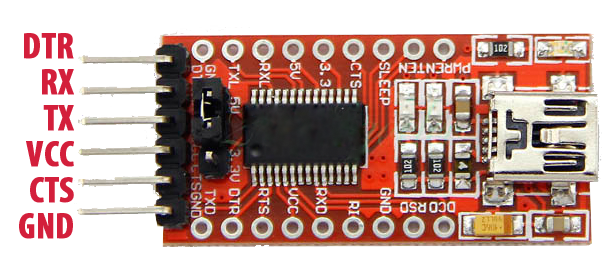

usb ttl ft232rl pinout

---

DTR: Data Terminal Ready - an output used for flow control
RX: Serial data Receive pin
TX: Serial data Transmit pin
VCC: Positive voltage output - this is controlled by the jumper. If the jumper is set to 5V, this will provide a 5V output. If the jumper is set to 3.3V, this will provide a 3.3V output.
CTS: Clear To Send - an input used for flow control
GND: Ground or 0V

For most uses, you can simply connect the following pins:

RX on this board to the TX pin on your device
TX on this board to the RX pin on your device
GND on this board to GND on your device

The VCC pin is ideal for powering small devices such as homemade circuits. This pin should not be connected when a device has a separate power supply as this may damage both devices.

Quellen/Source:
- ftdichip.com - Drivers
-
-
-
-
-
-
-
-
-
